Rotary Automatic Egg Tray Machine For Carton Production Industry 4000Pcs / H

Egg Tray Machine Descriptions:

1. After the process of pulping, vacuum suction forming, metal dryer drying, shaping and stacking etc, the produce different kinds of egg trays;
2. With 25 years experience and mature patented technology, offering turnkey solutions for energy-saving, high efficiency and reliable pulp molding production line.
3. Mainly applied for egg tray, fruit tray, egg carton, paper tray and etc, eco friendly and 100% biodegradable.

Egg Tray Machine Parameters:

Production Consumption:

Egg Tray Machine Applications:

1	15, 20,30,40packed egg tray… quail egg tray
2	6, 10,12,15,18,24 packed egg carton…
3	Fruit tray, seeding cup and other Agricultural products
4	2 or 4 packed cup holder
5	Disposable Medical Care Products like bedpan, sick pad, female urinal…
6	All kind of industrial package

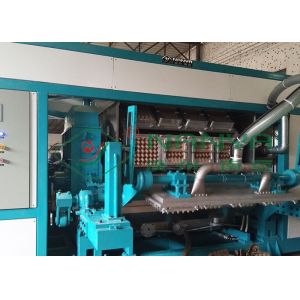

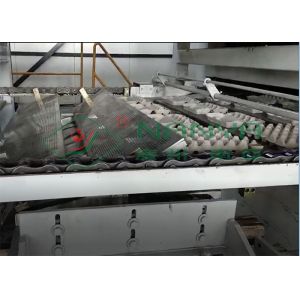

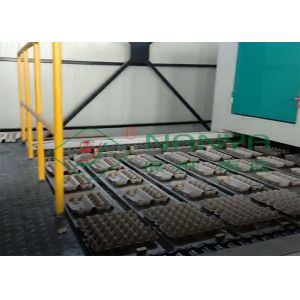

Egg Tray Machine Details

How this Production Line Works:

1. Pulping System: put raw material into hydrapulper, grinding with water. Adjust the pulp into certain density.
2. Forming System: the adjusted pulp will transfer to rotary machine, products will be formed in the moulds with the vacuum suction.
3. Drying System: products will drop down on the metal dryer for drying.
4. Hot Press System: for egg tray and fruit tray, they don't need this process; but for egg carton, this process is compulsory.
5. Stacking & Packing System: After dried or after hot press, the products will go to package. Court the number of the dried products, separate them and stack them up.

YOUTUBE Video Links:

https://www.youtube.com/watch?v=dBXeqLyIC44&t=26s

Main Business Terms:

NANYA was set up in 1994 and now we have two production bases,covers over 40,000 square meters, now it’s one of the earliest and biggest pulp molding machines manufactures in China and becomes the leading pulp molding machinery supplier in the world.

NANYA has more than 50 persons in R&D centre, with specific professional technicians taking charge of machinery, heat energy, electrical engineering, mould process center and paper making technology.

NANYA has established long term cooperation with renowned universities, Guangdong University of Technology (GDUT) and South China University of Technology (SCUT). We together develop and apply the advanced technology at home and abroad these years.

NANYA machines obtained CE certificate and passed TUV and SUS inspection. NANYA adopts the international brands for spare parts and auxiliary equipment, such as Siemens/Schneider /Festo, etc.

NANYA has exported machines and moulds to more than 80 countries and regions and enjoys good reputation among customers.

NANYA will provide the optimal solution for you to replace plastic and Styrofoam. Let’s make joint effect for a greener world.
